Ever imagine a drone the size of a hummingbird or even a mosquito? It sounds crazy, but engineers are working on exactly that. At this tiny scale, flying becomes a huge challenge because air starts to feel as thick as syrup. It’s as if these micro-drones are trying to swim through honey. Regular drone designs (mini helicopters or fixed wings) won’t work when you shrink down this far. So researchers have turned to nature’s smallest flyers – hummingbirds, bees, and real insects – for inspiration. We used to copy birds and planes, but bugs have taught us a whole new way to fly.

Purdue’s Tiny Hummingbird Robots

Flappy Hummingbird robot goes where drones cannot

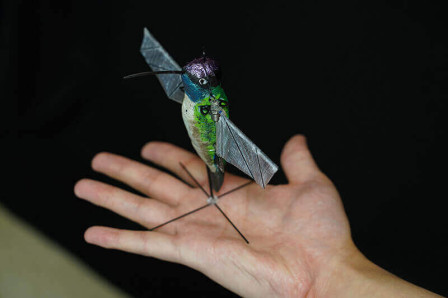

One amazing example comes from Purdue University in 2019. The team built a robotic hummingbird – not much bigger than the real thing – that can hover, dive, and zip around much like a living hummingbird. It has a 3D-printed body and wings made of super-light carbon-fiber rods covered with thin plastic, and only two tiny motors (one for each wing). But here’s the trick: those wings don’t spin like helicopter blades. They flap in a figure-eight pattern with huge angles, just like a hummingbird’s wings do.

The researchers found that as size shrinks, you have to flap even faster to lift enough air. A big bird might beat its wings 30 times per second, but this hummingbird robot beats its wings hundreds of times per second! In fact, the 12-gram robot could lift over 27 grams – more than double its own weight – thanks to clever aerodynamics. At this scale, airflow is unsteady and a bit chaotic. The robot’s wings whip so fast that each downstroke blasts air straight down; then on the upstroke, the wing passes through the turbulent air pocket it just created, giving the robot an extra lift boost. It’s a bit like each wingbeat creates a tiny tornado (called a vortex) that the robot “rides” to stay aloft.

Purdue didn’t just build the hardware; they also trained the robot to fly smart. The engineers filmed real hummingbirds doing tricky maneuvers – zooming, turning, darting – and used machine learning so the robot could learn those moves in a simulator. After “practicing” in the computer, the little birdbot can perform these tricks on its own. Right now it still needs a power cable tether, but the hope is to eventually fit it with a tiny battery or even a small solar cell to let it roam freely.

Here’s a cool test they did: to simulate the thick-air environment, the team made a larger model of the wing and flapped it in a tank of oil. Because oil is much denser than air, this mimics the syrupy feel of air at insect scales. The scaled-up wing still generated steady lift in the oil, even under turbulent conditions. In short, the Purdue hummingbird robot shows how copying nature’s wing shape, flexibility, and flapping tricks can beat the fluid-dynamics problems that stump ordinary micro-rotors.

China’s Mosquito-Size Spy Drone

The all new Chinese Spy Drone

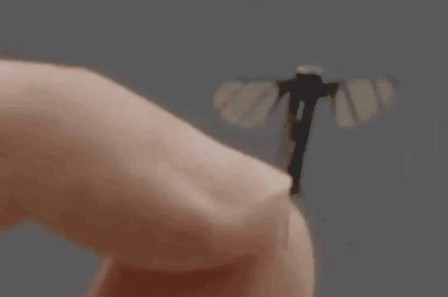

Even smaller than a hummingbird is China’s new mosquito-like drone. Reported in 2025, this tiny bionic microdrone is only about 2 centimeters long and weighs a puny 0.3 grams. It really looks like a little bug – a stick-thin body with two leaf-shaped wings on each side (four wings total) and spindly legs. In one video demo, a student held the drone on his fingertip and explained that these micro-robots are meant for sneaking around in tight spots. Because of its size, this mosquito-drone hardly shows up on radar and can slip through cracks that bigger drones would get stuck in.

Its wings flap unbelievably fast – roughly 500 times per second, according to reports. That ultra-high-frequency beating is needed just to get any lift in such light air. The entire gadget is packed densely: a tiny motor (or piezo actuator), minuscule sensors, a lightweight control chip, and whatever power source it can carry. In the demo, it was controlled via a smartphone app in a calm lab environment. Of course, fitting all that into a bug’s body is super challenging. In fact, for now it can only fly in calm indoor conditions – even a light breeze would blow it off course. It basically carries almost no payload: no camera, hardly any battery life.

Engineers imagine swarms of these micro-drones exploring disaster sites or doing surveillance where no larger drone could go. For now it’s a lab novelty, but it proves that insect-inspired designs can handle the “syrupy air” that stops traditional tiny drones.

Other Buzzing Innovations

Purdue and China aren’t alone in looking to bugs. One famous pioneer is Harvard’s RoboBee. That tiny flier weighs only about 0.1 grams and has a 3-centimeter wingspan. It uses piezoelectric “muscles” to flap its wings at high speed. RoboBee can already hover and even dive underwater and then fly out again. Recently, Harvard researchers gave it crane fly–inspired legs for gentle landings – no more crashing into the floor. It’s still mostly tethered (needing a cable for power), but with these legs and improved control it can now set down softly without breaking its delicate frame.

MIT is pushing the envelope too. Their latest robotic insect can hover for about 1,000 seconds (nearly 17 minutes) – more than 100 times longer than earlier models. They accomplished this by slimming the design from eight wings down to four, which freed up space to add a tiny battery. This revamped bugbot is more agile and durable. In tests it has performed flips in mid-air and even spelled “MIT” while flying along a precise path. The vision is a future robotic hive: swarms of these tiny drones working like bees, pollinating crops or monitoring forests – much like real bees and flies do.

Not all mini-drones flap wings. Norway’s Black Hornet, for example, is a palm-sized quadcopter used by militaries around the world. It doesn’t look like a bug, but it shows how stealthy and quiet a drone can be at that scale. Other researchers mix approaches: adding quick-reacting sensors that mimic a fly’s reflexes, making small rotors behave like flapping wings, or giving drones elastic wing joints to store and release energy each beat (just like an insect’s thorax). The common theme is biomimicry: copying nature’s tricks so that even tiny drones can fly effectively.

Buzzing into the Future

So what does all this mean for the future? Right now, insect-scale drones are mostly lab demos, but they’re improving fast. The “air as thick as honey” problem is just another engineering challenge to solve. By using flapping wings, bendy materials, and smart control algorithms, these micro-robots are beginning to overcome it. As batteries and electronics continue to shrink, we may soon see swarms of tiny drones on real missions. Imagine dropping dozens of mosquito-sized flyers into a collapsed building to find survivors, or swarms of them tending crops or inspecting plant growth. It sounds like science fiction, but researchers are already working toward it.

In short, flying bugs have had hundreds of millions of years to perfect tiny flight, and now we’re catching up. By copying their wing shapes, wing beats, and even landing tricks, our little robots are learning to fly in conditions we once thought impossible. It’s kind of mind-blowing: the insect buzzing outside your window has become the blueprint for the latest drones. The buzz of insect-inspired flight is just getting louder – and it might soon be a game-changer in drones.
